SPIALE WILY Air/Oil Lubrication system

Classification:

High speed spindle lubrication

Details

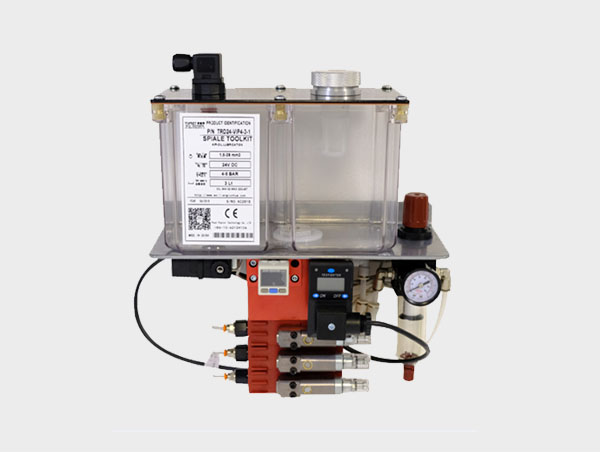

SPIAL WILY air/oil lubrication unit using compressed air as the main power, modular design, is a high cost-effective lubrication products for high-speed spindle application. It provide reliable lubrication, cooling and protection for bearings.

product description

The SPIAL WILY air/oil lubrication unit adopts a modular structure to supply oil 1 to 8 points seperated. Each outlet can be adjusted between 1.80-39.0mm3 as required per bearing. Set the oil interval with timer to ensure the independent oil supply.

SPIAL WILY air/oil lubrication unit equipped with a pressure switcher for alarming when air supply pressure is insufficient. In addition, the air/oil outlet filtration equipped 3 microns filter to ensure the inside cleanliness of spindle.

Technical Parameters

Reservior Capacity（L）	3L
Compressed Air Pressure（bar）	5-8 bar
Control Voltage	DC24V (Standard Mode)/AC220V
Lubrication Points (number)	1-8
Compressed air filtration	20 μm
Oil dosage range	1.80-39mm³/Stroke
Frequency of stoke	1-66Pulse/min
Working Temperature	-5℃-55℃
Working Humidity	90%Max
Lubricant viscosity	32-220cSt

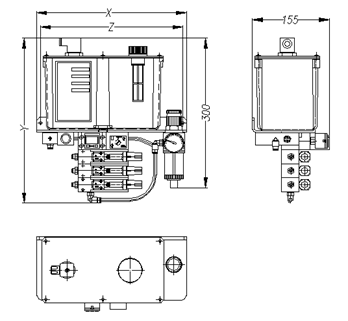

Lubrication point	Y(mm)	X(mm)	Z(mm)	Weight(kg)
1	276	300	285	5.2
2	304			5.7
3	332			6.2
4	360			6.7
5	388			7.2
6	416			7.7
7	444			8.2
8	472			8.7

Product advantages and characteristics

● Accurate dosage, could adjust dosage quantities according to the bearing requirements and duty.
● Digital timer: dosage interval setting as per intention or requirements.
● Monitering air supply pressure and alarming singnal if required.
● 20 μm Filtration mesh for supply air
● Low oil level detector with remote alarm.
● 3 μm Filtration for air/oil feed
● Modular structure, easy to adjust lurication points and reach dynamic combination
● Adopting spiral tube for air/oil delivery to ensure lubrication oil enter bearing on “START”.
● Simplized operation, lower maintenance cost

Product order information

Lubrication Point	Purchasing code（DC24 V）	Purchasing code（AC220 V）
1	TR24-VIP4-1-1	TR24-VIP4-1-2
2	TR24-VIP4-2-1	TR24-VIP4-2-2
3	TR24-VIP4-3-1	TR24-VIP4-3-2
4	TR24-VIP4-4-1	TR24-VIP4-4-2
5	TR24-VIP4-5-1	TR24-VIP4-5-2
6	TR24-VIP4-6-1	TR24-VIP4-6-2
7	TR24-VIP4-7-1	TR24-VIP4-7-2
8	TR24-VIP4-8-1	TR24-VIP4-8-2

Product application

● High speed spindle

● High speed bearing

● Heavy duty bearing

● High temperature，dirty area bearing lubrication

● Chain lubrication
