Toolkit Coaxial air oil lubrication systems

Details

TOOLKIT Coaxial Air/Oil Lubrication System is one of TOPSET ® external feed Minimum Quantity Lubrication(MQL) product, TOOLKIT Coaxial Air/Oil Lubrication System was powered by compressed air, it activate micro plunger to metering lubricant dosage through inner tube.  The both air and lubricant through coaxial tube reach the nozzle to spray on lubrication point, make the cutting zone get reliable lubrication, to achieve near-dry machining or said MQL machining.



Product Description

TOOLKIT Coaxial Air/Oil Lubrication System is one of TOPSET ® external feed Minimum Quantity Lubrication(MQL) product, TOOLKIT Coaxial Air/Oil Lubrication System was powered by compressed air, it activate micro plunger to metering lubricant dosage through inner tube.  The both air and lubricant through coaxial tube reach the nozzle to spray on lubrication point, make the cutting zone get reliable lubrication, to achieve near-dry machining or said MQL machining.

The inner of coaxial tube designed for lubricant, outer for compressed air and transfer separated. It ensure compressed air flow along with continuity, accuracy and speed of  lubricant supply, the design suitable for the longer distance delivery and quick response.



Parameter

Reservior Capacity (L)

3L

Compressed Air Pressure (bar)

5-8 bar

Control Power Voltage

DC24V 或 AC220V

Contraol Mode

Self frequency generator, Adjustable

Max. Outlet Q’ty

8

 Compressed Air Filtration

20 μm

Lubricant Aajustable Range

1.89-39mm³/行程

Working Temperature

-5℃-55℃

Working Humdity

90%Max

Lubricant

COTE lubricant or other agreed liquid type

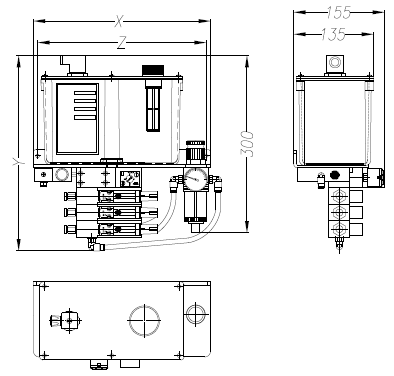

Overall Dimensions




Features

● Accurate set dosage, accoding to requirements to set dosage eaach point.

● Module type design, easy to add or reduce nozzle quantity.

● Quick Respose: After “on” signal, stable mist received on the nozzle depending on the length of coaxial tube.

● Lubricant and air delivery separately, longer transfer expected.

● Self  frequency generator to achive feed time.

● To select suitable spray nozzle or design nozzle based on the requirement.

● Lubricant residence of cutting chip: ≤1%, Directly Recycle acceptable.

● Suitable for machine tools innovation, gear, chain, saw, wire rope external feed minimum quantity lubrication

● Cote series special lubricant, No stabilizing agent, No additive agent, Compliance with OHSA rules and ideal for shop environment and avoiding wet floor and awful smell.





Order Information

Point

(DC24V)Part Number

(AC220V)Part Number

1

TXD24-VIP4-1-1

TXD220-VIP4-1-1

2

TXD24-VIP4-2-1

TXD220-VIP4-2-1

3

TXD24-VIP4-3-1

TXD220-VIP4-3-1

4

TXD24-VIP4-4-1

TXD220-VIP4-4-1

5

TXD24-VIP4-5-1

TXD220-VIP4-5-1

6

TXD24-VIP4-6-1

TXD220-VIP4-6-1

7

TXD24-VIP4-7-1

TXD220-VIP4-7-1

8

TXD24-VIP4-8-1

TXD220-VIP4-8-1

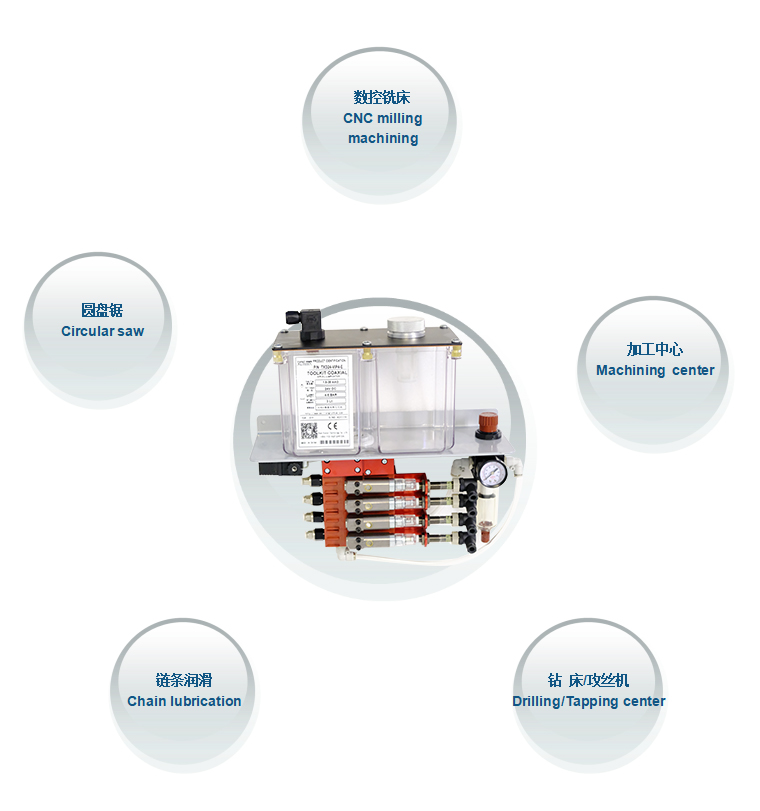

Applications

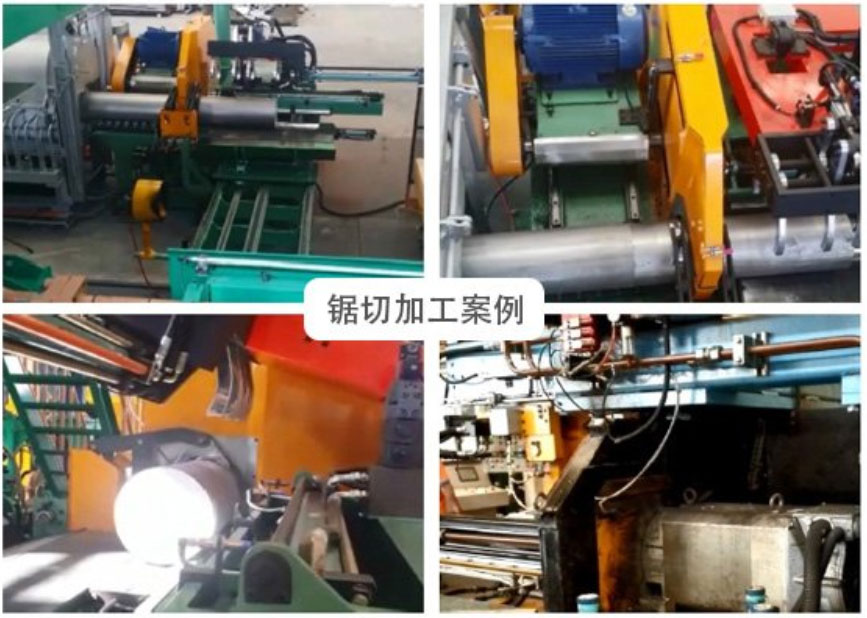

Case Picture
