MULTI-GRIM AIR OIL LUBRICATION UNIT

MULTI-GRIM air/oil lubrication unit is one of TOPSET ® external feed Minimum Quantity Lubrication(MQL) product, MULTI-GRIM was powered by compressed air, transfer the lubricant or other liquid lubrication products to the nozzle via a capillary, the lubricant is mixed with compressed air and sprayed to the lubrication point, make the cutting zone get reliable lubrication, to achieve near-dry machining or said MQL machining.

Product Description

MULTI-GRIM air/oil lubrication unit was designed for machining lubrication, cooling and chip disposal assistance. The lubricant or other liquid will be transfered by compressed air and its flowrate could be adjusted accordingly.  MULTI-GRIM air/oil lubrication unit was total loss lubrication system, i.e. the lubricant will be completed used during the process, no cycling requirements. The lubricant through capillary to nozzle spray form mist by compressed air. Lubricating zone between tool and work piece. The minimum quantity lubrication unit ensures efficient lubrication of metal cutting with minimum lubricant.  MULTI-GRIM air/oil lubrication unit is external feed MQL unit. By the same compressed air source to pressurized lubrican and trasfer, cooling and purging (often called two-phase flow).

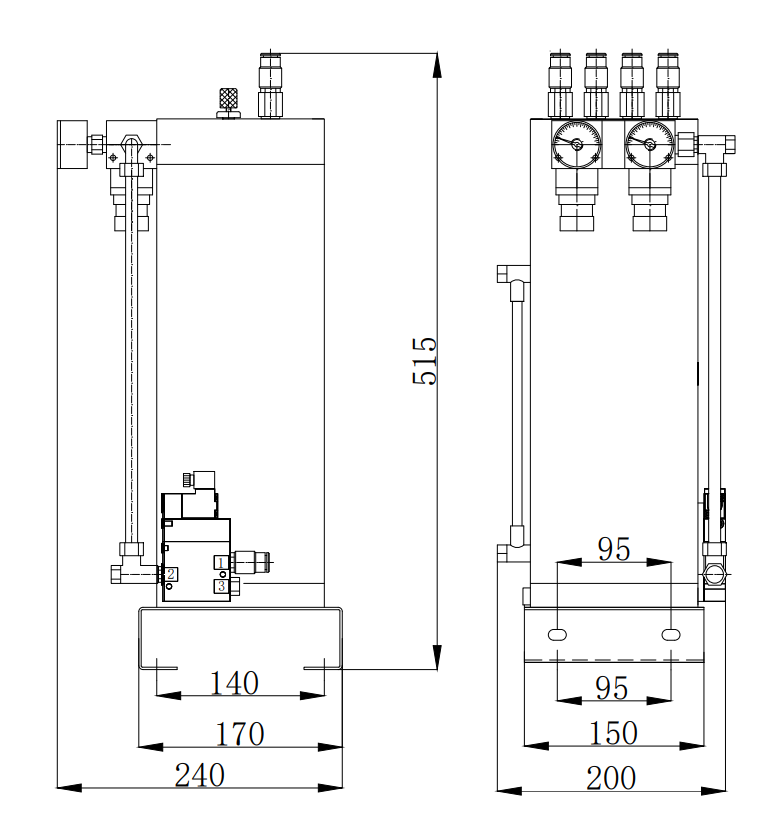

Parameter

Features

● Each outlet lubricant flowrate could be adjusted according to the lubrication requirements.

● Easy to achieve integration with machine tools, innovation, new machine

● Quick response: After machine center "open" command, the stable oil fog can be output in a short time which depend capillary length.

● The lubricant through capillary and separate compressed air, longer transfer distance chould be archived.

● No mechanism wear as no rotation parts

● To select suitable spray nozzle or design nozzle based on the requirement.

● Lubricant residence of cutting chip: ≤1%, Directly Recycle acceptable.

● External Feed metal cutting application, such as cold inner boring cutter machining.

● Cote series special lubricant, No stabilizing agent, No additive agent, Compliance with OHSA rules and ideal for shop environment and avoiding wet floor and awful smell.

Order Information

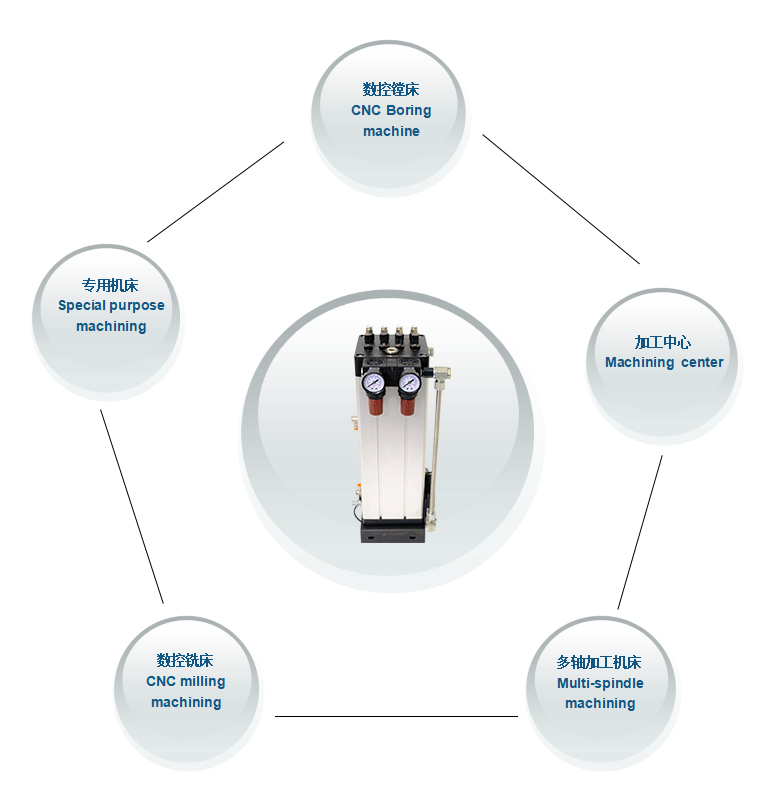

Application
